MCF-B65
Our customers can always expect the highest quality
Researchers and clinicians often use MagVenture’s products in combination with products from other manufacturers. Our products are highly integrable with the solutions offered by Localite (neuronavigation), Brain Products (EEG) and Axilum Robotics (TMS Robots)

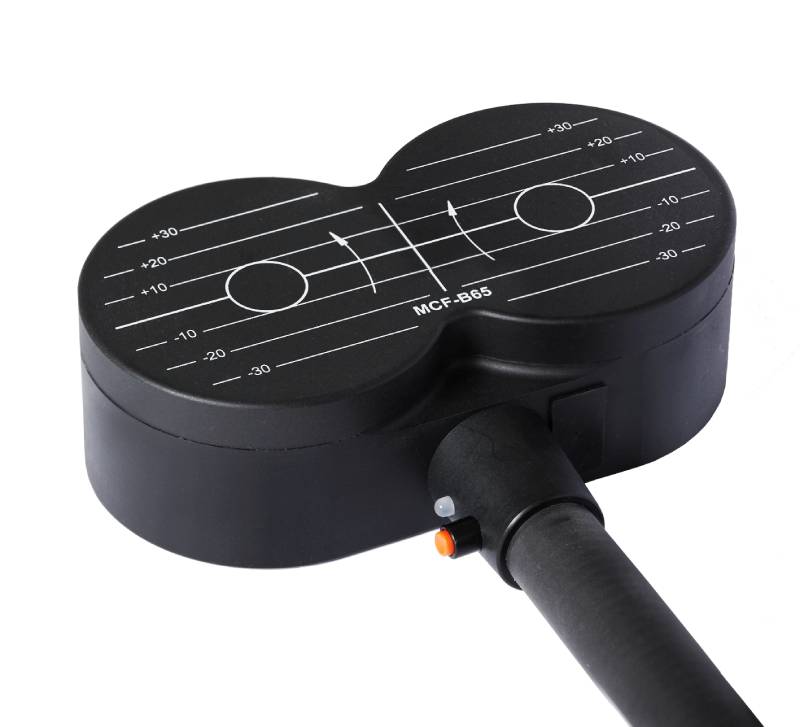

A butterfly-shaped coil, with static cooling, designed for protocols that require a high number of stimuli without external cooling. Equipped with a trigger button on the handle for ease of operation.
features
| Shape | Butterfly (figure 8) |
| Cooling | Static cooling |
| Placebo | No |
| Stimulator compatibility | MagPro R20, MagPro R30, MagPro R30 with MagOption, MagPro X100, MagPro X100 with MagOption, MagPro R100 |
Specifications
Mechanical Properties
| Weight of transducer head | 1.5 kg/3.3 lbs |
| Cable length | 2 m/6.6 ft |
| Dimensions of transducer head | 172x92x53 mm/6.9 x 3.7x 2.0 in |
Coil winding data
| Inner diameter | 35 mm/1.4 in |
| Outer diameter | 75 mm/3.0 in |
| Winding height | 12 mm/0.5 in |
| Number of windings | 2x (2 x 5) |
Magnetic and electrical properties
| Max initial dB/dt (near the coil surface) | 32 kT/s |
| Active pulse width (Biphasic) | 280µs |
Ordering number
| Operating period | 5 years |
| Ordering number | 9016E042- |
Applications
Performance
Number of stimulations, before warm-up at ambient temperature 20°C (68°F):
Mean output 75% of maximum at 1pps. 2,000 pulses
Protocol: 60 trains @ 50 pulses/train @ 10pps @ Inter Train Interval: 25s @ Output=75% @ total number of stimulations 3,000
