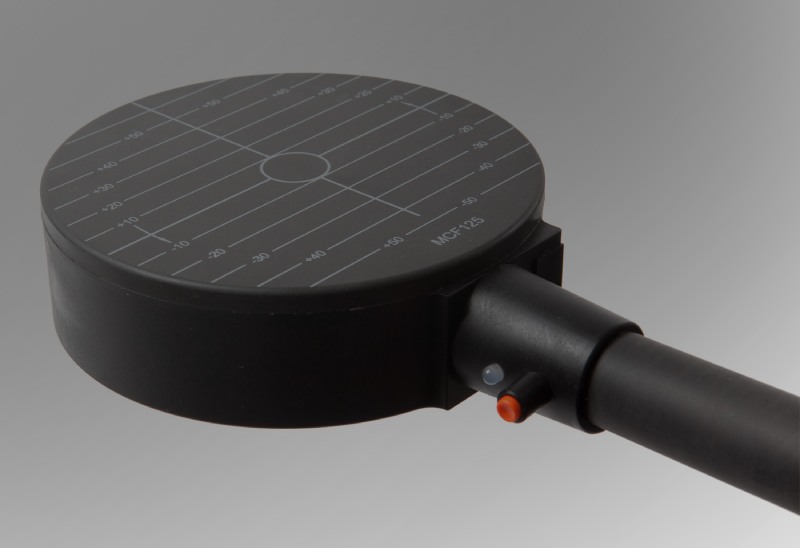

A large circular coil providing broad and deep stimulation. The MCF-125 has static cooling and is designed for stimulation protocols, that require higher number of stimuli without the need for external cooling. Equipped with a trigger button on the handle for ease of operation.


Shape Circular
Cooling Static cooling
Placebo No
Stimulator compatibility MagPro R20, MagPro R30, MagPro R30 with MagOption, MagPro X100, MagPro X100 with MagOption, MagPro R100


Mechanical Properties

Weight of transducer head 1.5 kg/3.3 lbs
Cable length 2 m/6.6 ft
Dimensions of transducer head ø140×45 mm/ ø5.5 x 1.6 in

Coil winding data

Inner diameter 35 mm/1.4 in
Outer diameter 121 mm/4.8 in
Winding height 6 mm/0.2 in
Number of windings 13

Magnetic and electrical properties

Max initial dB/dt (near the coil surface) 34 kT/s
Active pulse width (Biphasic) 280µs

Ordering number and operating period

Operating period 5 years
Ordering number 9016E041-



Number of stimulations, before warm-up at ambient temperature 20°C (68°F):
Mean output 75% of maximum at 1pps. 2,000 pulses

Protocol: 60 trains @ 50 pulses/train @ 10pps @ Inter Train Interval: 25s @ Output=75% @ total number of stimulations 3,000
